Development of the atomic model

Development of the atomic model

Major phases in the history of theories and views about the structure of the atom.

Chemistry

Keywords

atomic model, Democritus, Dalton, Thomson, Rutherford, Bohr, Sommerfeld, Heisenberg, Schrödinger, nucleus, electron cloud, atomic structure, proton, electron, neutron, elementary particles, atomos, excitation, spectrum, quantum mechanics, chemistry

Related items

Scenes

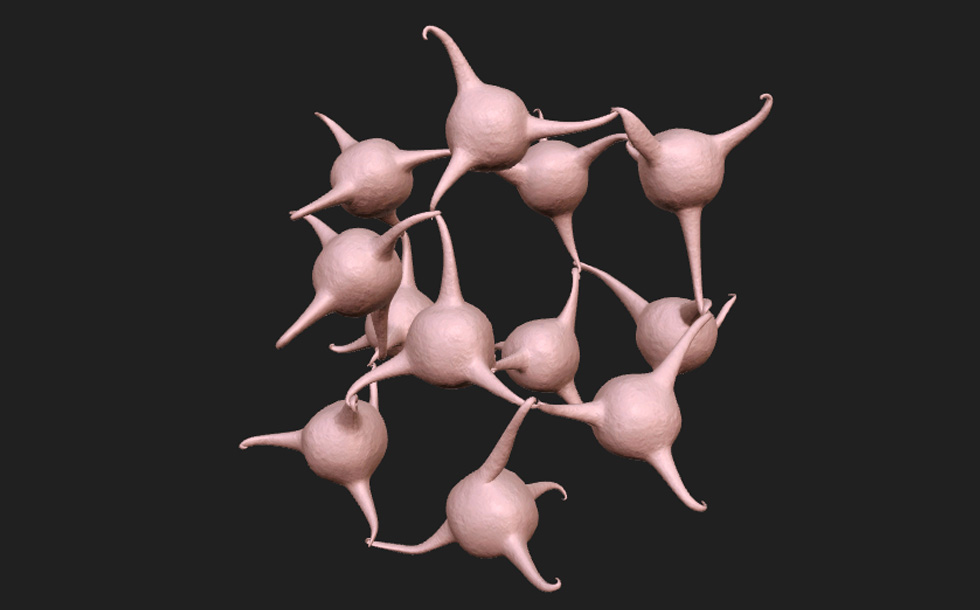

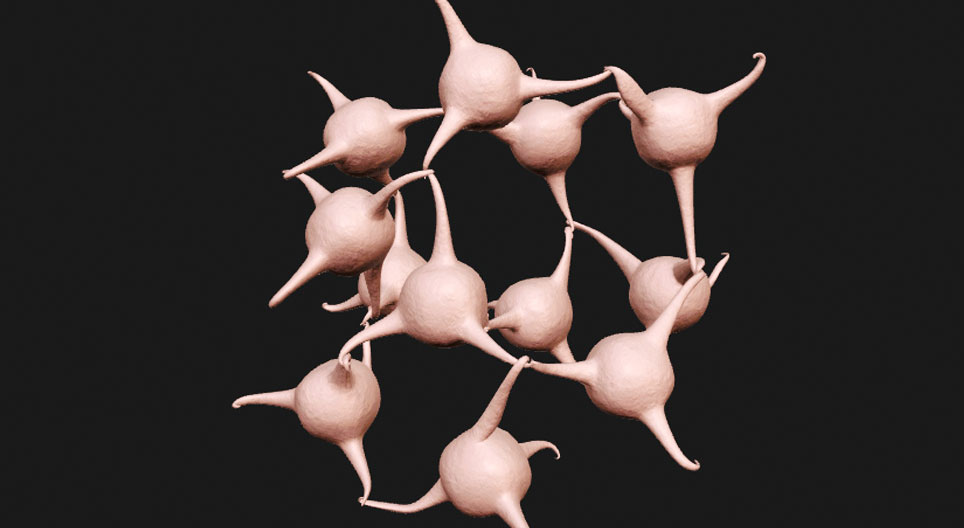

Democritus

According to Democritus and his master, Leucippus, matter is made up of tiny, indivisible particles called atoms.

According to their model, atoms exist eternally: they are neither destroyed, nor produced; they can be different in size and shape, and they might be connected through small hooks.
The peculiarities of atoms define the characteristics of different materials. For example, the roundish atoms with hooks shown in the animation have a bitter taste and they are sticky. Sweet materials are small and round. Therefore, they are able to infiltrate different materials, changing their taste.

Today we know that this naive atomic model is not correct; however, this theory is important in the history of science, because it marked the birth, in the 4th–5th centuries BC, of the notion of the non-continuous, quantised nature of matter.

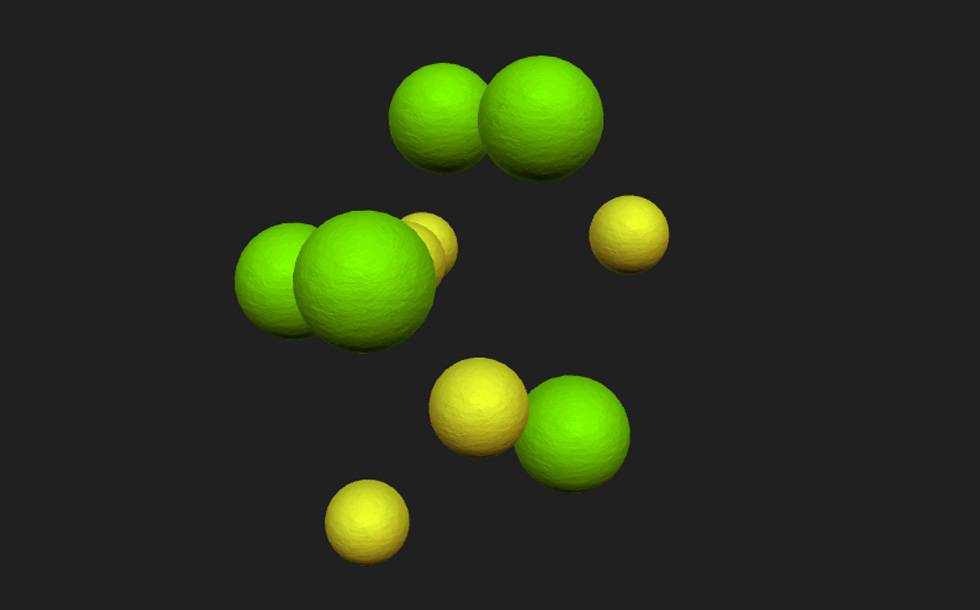

Dalton

According to English scientist John Dalton, compounds are made up of different combinations of atoms. He described atoms as indivisible, tiny spheres. Dalton’s model was essentially an improved version of Democritus’ atomic theory.

According to Dalton, the consistency of materials depends on the distance between atoms. Although it later turned out that atoms are not indivisible, he had correctly assumed their existence.

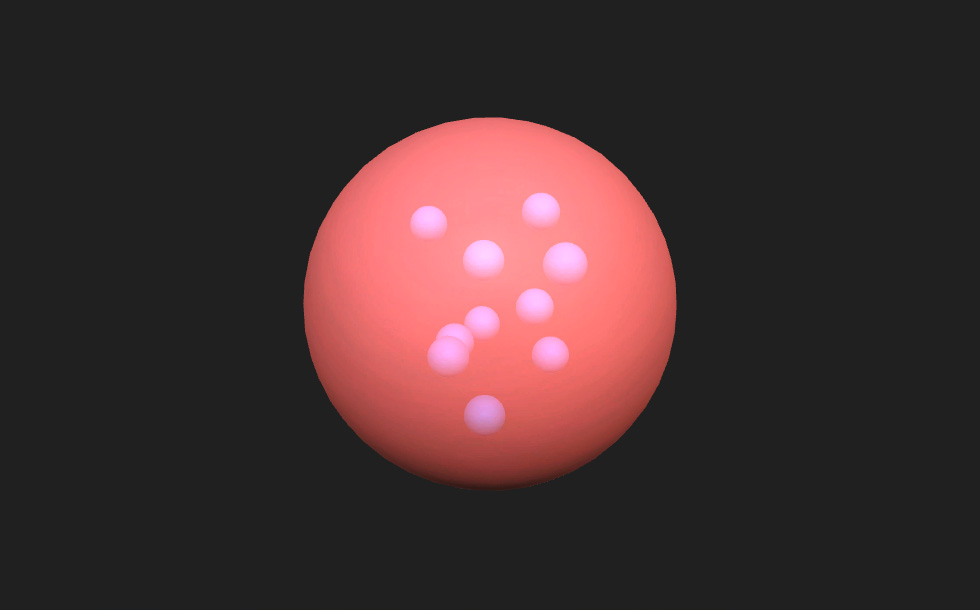

Thomson

By the end of the 19th century, it had become clear that the theory of the atom’s indivisibility could not be maintained any longer. At the turn of the century, English physicist Joseph John Thomson noticed that cathode rays are made up of negatively charged particles, and with this, he demonstrated the existence of electrons.

In several experiments, he concluded that electrons can be extracted from the atoms of any element and that thus all atoms contain electrons. As atoms are electrically neutral, he assumed that the negatively charged electrons are embedded in a positively charged substance. Thomson referred to this as the ’plum pudding model’ because it reminded him of plums embedded in a pudding.

Rutherford

In Ernest Rutherford’s experiments, gold foil was bombarded with alpha particles, that is, by helium nuclei. The majority of alpha particles simply passed through the foil, while a few of them changed their direction while passing through, and some of them were reflected from the foil.

If the Thomson atomic model had been correct, all the alpha particles would have slowed down, but would have passed through the metal without any change of direction. The outcome of his experiments is only possible if the vast majority of the weight of the gold atoms is condensed in a rather small space.

Based on his results, Rutherford developed and published his atomic model in 1911, in which the electrons circulate around the positively charged nucleus. The diameter of the nucleus is about one ten-thousandth of the atom’s diameter.

Bohr

The development of a new model became necessary, because, according to some calculations, the electrons circulating around the nucleus in the Rutherford model should be emitting energy continuously, causing the electrons to slow down and spiral into the nucleus. However, the general experience is that atoms do not collapse.

Thus, Rutherford’s atomic model had to be modified. The problem was solved by Danish physicist Niels Bohr in 1913 with the following assumption: electrons can only circulate around the nucleus in circular orbits. Therefore, electrons cannot spiral into the nucleus; they can jump from one orbit to another.

When it absorbs energy in the form of a photon, the electron is stimulated and enters a higher energy orbit further from the nucleus; the electron may enter a lower energy orbit through the emission of energy.

As the electron can only absorb or emit the photon with the energy necessary for the jump, the emission and absorption spectra of atoms are not continuous. This matches experimental results with hydrogen atoms.

Sommerfeld

Sommerfeld updated Bohr’s atomic model and published his theory in 1920, which is also called the Bohr-Sommerfeld model. In this atomic model the electrons can only circulate around the nucleus on certain orbits as well, but the orbits may also be elliptical.

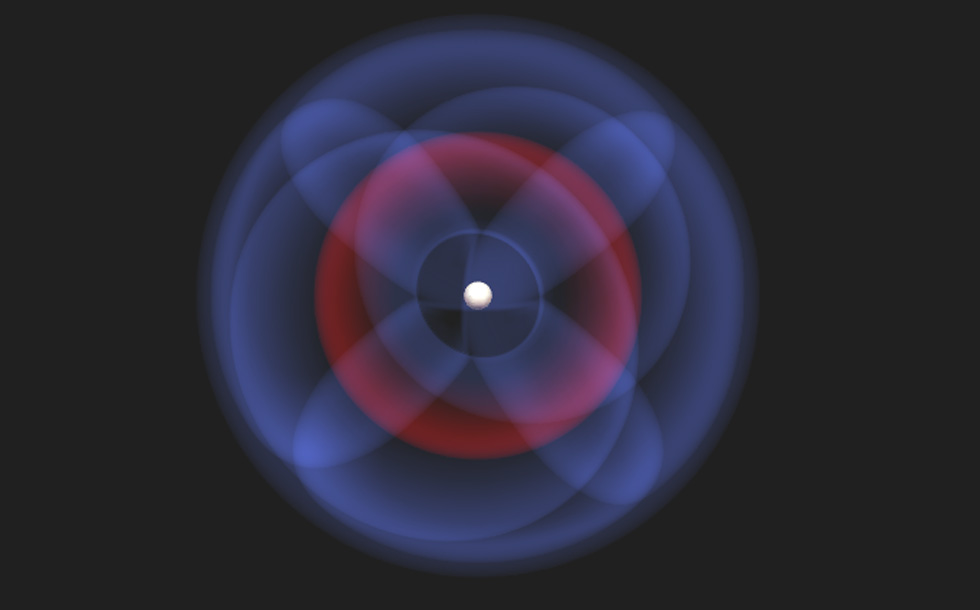

Heisenberg, Schrödinger

  • X
  • Y
  • Z

The Heisenberg-Schrödinger model is also called the quantum mechanical model of the atom. According to quantum mechanics, particles cannot be described as globules with exact locations. It is more realistic to depict the atom’s electron shell as an electron cloud. We are somewhat likely to find the electron at particular points in the electron cloud.

There are atomic orbitals in the atom, and within the orbitals there are s, p, d, and f subshells with specific shapes. This atomic model is the best way to reflect reality according to our current knowledge of the structure and operation of the universe.
